A vibrating table designed to compact and shape paver blocks, ensuring smooth surfaces and durability.
-
Plot No. 22, NK3 Industrial Park, Bakrol-Gatrad Road, Opp. Redbricks Batti, Bakrol,Bujrang,Ahmedabad-382430, Gujarat
- Plot No. 22, NK3 Industrial Park, Bakrol-Gatrad Road, Opp. Redbricks Batti, Bakrol, Bujrang, Ahmedabad-382430, Gujarat.
-
sales@skymacindustries.insales@skymacindustries.in
-
+91 76000 09512+91 76000 09512

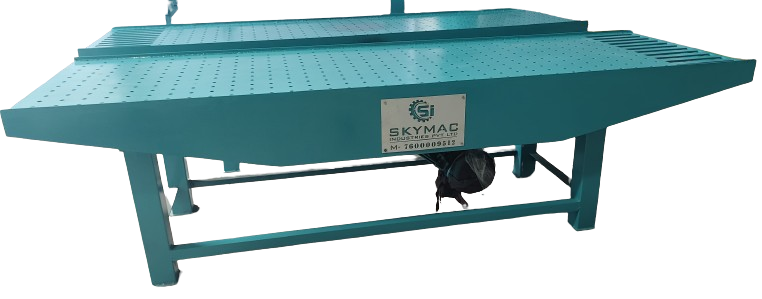

Paver Block Vibrating Table
Technical Specs
No
Property
HP/Cap.
1
Is It Portable
Non Portable
2
Function Type
Vibration
3
Usage/Application
Construction
4
Body Material
Mild Steel
5
Usage/Application
Construction
6
Max. Product weight
7
Machine Type
8
Hydraulic Oil Cap.
9
Material Compaction System
10
Required Shed Area
Production Capacity
Main Frame
Structure: The main frame is the machine's base, providing support for all other components.
Main Frame
It is usually made from heavy-duty steel or iron to ensure stability and durability.
Mold System
Molds: The molds are designed to shape the paver blocks.
Mold System
Hydraulic Press: In hydraulic machines, the mold system is operated by hydraulic pressure to compact the concrete mixture into the desired shape.
Mixing Unit
Concrete Mixer: This unit is used to mix the cement, aggregates, sand, and water to create the concrete mix.
Mixing Unit
Feeding System: A feeding system transfers the mixed concrete to the molds. This can include conveyor belts or hoppers.
Compaction System
Vibrators: Vibrators or vibrating motors are used to ensure the concrete mix is evenly distributed
Compaction System
Pressing Mechanism: In some machines, the pressing mechanism applies pressure to compact the concrete mix, forming solid and uniform paver blocks.
Control Panel
Operation Controls: The control panel includes buttons, switches, and digital displays for operating the machine.
Control Panel
PLC System: In automated machines, a Programmable Logic Controller (PLC) system may be used to automate the production process and enhance precision.
Hydraulic System
Hydraulic Pump: Powers the hydraulic press and other hydraulic components of the machine.
Hydraulic System
Hydraulic Cylinders: Used to apply pressure to the molds and compact the concrete mix.
CONCRETE PRODUCT TYPES
All our Fly Ash Brick Making Machines can produce bricks of any shape and sizes including the following commonly used shapes
Skymac - GALLERY
p
p
p
p
p
Why choose us
Manufacturing & factory.
The Paver Block Vibrating Table is used to ensure that paver blocks are compacted and settled properly in their molds. The vibration helps to eliminate air bubbles, ensures uniform density, and enhances the strength and quality of the paver blocks by making sure the concrete mix settles evenly.
The capacity typically refers to the number of paver blocks or the size of the mold that can be placed on the table at one time. Generally, the table can handle molds of various sizes, with a capacity to accommodate up to several square meters of molds per cycle, depending on the model and size.
The power requirement for a Paver Block Vibrating Table usually ranges from 1 to 5 HP (Horsepower), depending on the size and model. Ensure that the power supply matches the machine's specifications to maintain efficient operation.
The vibration mechanism typically involves an electric motor connected to an eccentric weight or vibrating mechanism that generates controlled vibrations. These vibrations are transmitted through the table to the molds, causing the concrete mix to settle and compact uniformly.
Yes, the table is generally designed for ease of use. Operators need to place the molds on the table, start the vibration process, and then remove the molds once the vibration cycle is complete. Basic training is usually sufficient to operate the table effectively.
Regular maintenance includes checking and tightening bolts and connections, inspecting and lubricating the vibrating mechanism, and cleaning the table surface to remove any residual concrete. Periodic checks of the electrical components and vibration system are also important to ensure proper functioning and to extend the lifespan of the table.
